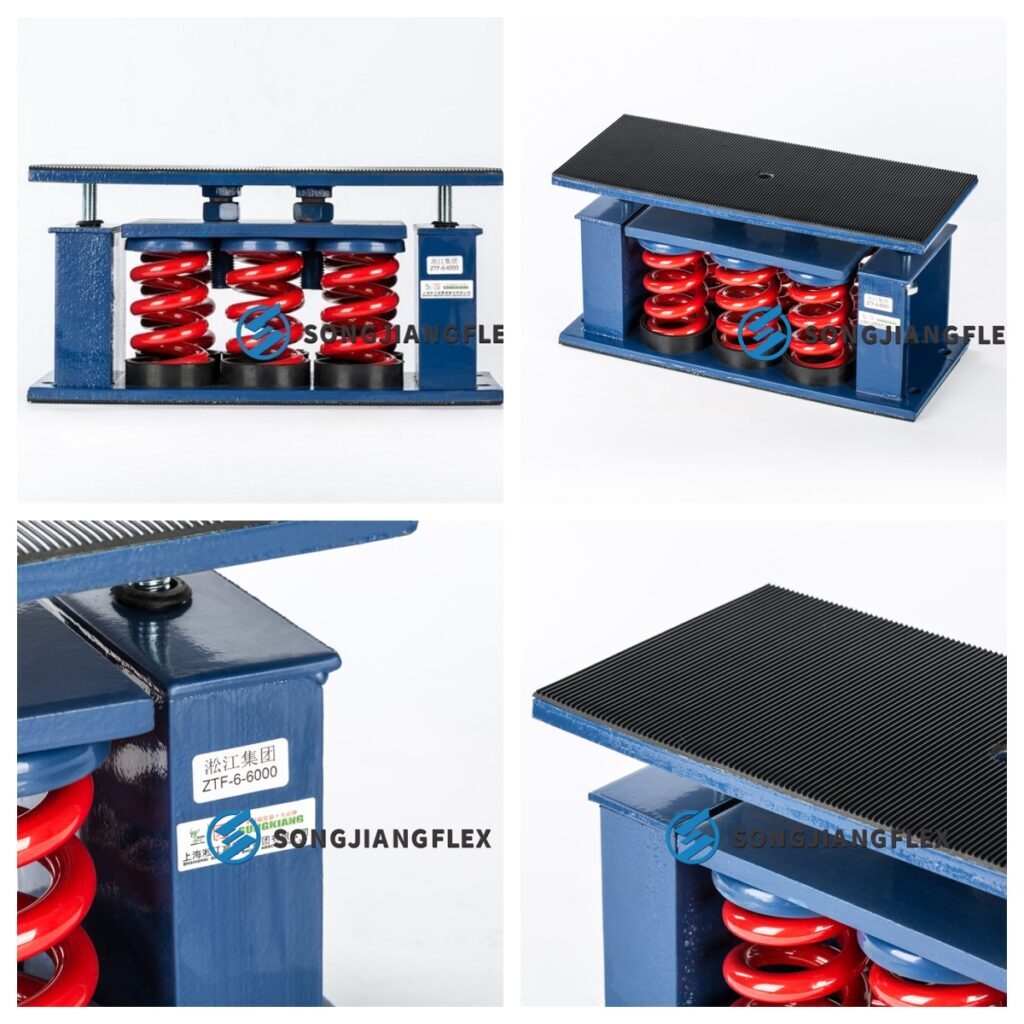

SHM Adjustable Spring lsolator
SHM Adjustable Spring lsolator
Frequently Asked Questions
What is an SHM Adjustable Spring Isolator for HVAC systems?
An SHM-6 Adjustable Spring Isolator for HVAC systems is a vibration and noise reduction device designed for air handling units, fans, pumps, and other equipment to minimize vibrations affecting building structures and the surrounding environment.
Features & Functions:
- Adjustable Height: Allows spring compression adjustment to accommodate various equipment loads.
- Efficient Vibration Isolation: Reduces vibrations and noise during HVAC operation, enhancing system stability.
- Durable Design: Made of high-quality springs and metal components, corrosion-resistant, and long-lasting for various installation environments.
- Flexible Installation: Suitable for rooftop, machine rooms, basements, and other HVAC equipment setups.
These isolators ensure smooth HVAC operation, reducing structural impact and disturbances while improving overall comfort and equipment longevity.
How does the SHM Adjustable Spring Isolator work?
The SHM-6 Adjustable Spring Isolator works by using its high-performance springs and adjustable mechanism to provide vibration isolation and damping. Here’s how it functions:
- Absorbing vibrations: When the equipment operates, the vibrations transmitted to the isolator are absorbed by the spring components, which deform elastically to reduce the impact energy and minimize vibration transmission to the surrounding environment.
- Adjusting height and stiffness: The SHM-6 features an adjustable function that allows for the modification of the spring’s pre-compression based on the equipment’s weight and vibration frequency, optimizing the vibration isolation effect.
- Improving stability: The isolator is typically equipped with anti-slip or fixation devices at the bottom, ensuring the equipment remains stable during operation and preventing displacement or wobbling, thereby enhancing safety and longevity.
This design is particularly suitable for HVAC systems, machinery, and industrial applications to reduce noise, extend equipment life, and improve operational efficiency.
What are the applications of the SHM Adjustable Spring Isolator in HVAC systems?
The applications of the SHM-6 Adjustable Spring Isolator in HVAC systems are significant and include the following aspects:
Reducing Vibration and Noise: In HVAC systems, equipment such as air conditioning units, fans, and water pumps often generate substantial vibrations and noise. The SHM-6 Adjustable Spring Isolator effectively absorbs these vibrations, reducing the impact on the building and surrounding environment, thereby providing a quieter and more comfortable working or living space.
Enhancing Equipment Stability: HVAC systems require long-term stable operation, and excessive vibration can affect performance and even cause failure. The SHM-6 allows adjustment of the spring stiffness and height, making it possible to optimize the isolation based on the load and vibration frequency, ensuring stability and reducing the impact of vibrations on the equipment’s structure, thus ensuring smooth and efficient operation.
Extending Equipment Lifespan: Long-term vibration can accelerate wear and tear on components, especially in precision machinery. The SHM-6 Adjustable Spring Isolator effectively isolates vibrations, minimizing wear and fatigue on mechanical parts, which extends the service life of equipment in HVAC systems and reduces maintenance and replacement costs.
Improving Energy Efficiency: By reducing unnecessary vibration and noise, the SHM-6 helps HVAC systems maintain efficient operation, thus improving energy usage efficiency. This not only reduces energy consumption but also decreases the frequency of system maintenance, further enhancing economic benefits.
Adapting to Different Loads and Environments: The SHM-6 can adjust spring stiffness and height based on different loads and operating environments, making it suitable for HVAC systems of various scales. Whether for residential buildings, small office buildings, or large commercial facilities and industrial applications, it provides excellent vibration isolation performance.
The SHM Adjustable Spring Isolator is designed with flexibility and high performance in mind, offering several key features that enhance its effectiveness in vibration isolation. Here are the main design features of the SHM-6 Adjustable Spring Isolator:
Adjustable Spring Tension: The SHM isolator is designed with adjustable spring tension, allowing for customization based on the specific load and vibration frequency. This feature ensures optimal performance for a wide range of applications.
High-Quality Spring Material: The isolator uses high-quality steel or alloy springs that provide excellent durability, elasticity, and long-term performance under varying loads and conditions.
Rubber Base and Top Plate: The isolator includes a rubber base and top plate, which further enhance its vibration-damping capabilities by absorbing impact and minimizing noise transmission. The rubber components help to isolate vibrations and protect sensitive equipment.
Heavy-Duty Construction: The SHM is built with heavy-duty materials to withstand extreme conditions and high-frequency vibrations commonly found in industrial and mechanical equipment.
Corrosion-Resistant Coating: To ensure durability in harsh environments, the isolator components are often coated with a corrosion-resistant material, making them ideal for use in industries with exposure to moisture or chemicals.
Compact and Versatile Design: The SHM Adjustable Spring Isolator is designed to be compact, saving space while still providing excellent isolation performance. Its versatile design makes it suitable for use in a variety of applications, including HVAC systems, industrial machines, and mechanical equipment.
Mounting Options: The SHM offers various mounting options for easy installation and integration with different systems. The adjustable features also allow for fine-tuning during installation to meet specific operational needs.
These design features make the SHM Adjustable Spring Isolator a reliable and flexible solution for vibration isolation across various industries, ensuring optimal equipment performance and reducing wear and tear.
1. Installation Location and Alignment:
- Ensure Proper Alignment: Ensure that the isolator is installed in the correct position so that it remains aligned under load. Misalignment can cause uneven wear or affect its performance.
- Level Installation Surface: The installation surface should be flat to ensure the load is evenly distributed, preventing imbalance that could lead to premature failure.
2. Adjust Spring Tension:
- Adjust Spring Tension According to Load: Adjust the spring tension based on the application’s load requirements to ensure the isolator works effectively. Proper tension ensures optimal performance.
- Regularly Check and Adjust: Periodically check and adjust the spring tension to accommodate changes in working conditions, ensuring continued efficient vibration isolation.
3. Secure Installation:
- Secure Mounting: The isolator should be securely fixed to prevent shifting or loosening during operation. Improper installation can lead to failure or damage to other equipment.
- Check Bolts and Fittings: Ensure that all bolts and connecting fittings are properly tightened to prevent loose components from affecting the isolator’s performance or damaging equipment.
4. Avoid Overloading:
- Adhere to Maximum Load Capacity: Never exceed the maximum load limit of the isolator to avoid damage or failure due to overloading.
- Distribute Loads Evenly: Ensure that the load is evenly distributed across the isolator to prevent uneven pressure on one side, which could cause localized damage.
5. Regular Inspection and Maintenance:
- Inspect the Isolator Regularly: Periodically check the isolator for any signs of wear, cracks, or other damage, particularly in the spring and rubber components.
- Replace Damaged Parts Promptly: If any damage is found, replace the damaged components immediately to prevent further issues and ensure the isolator continues to function properly.
- Lubrication and Cleaning: If necessary, apply appropriate lubrication to reduce friction and clean the isolator surface to extend its lifespan.
6. Prevent External Damage:
- Avoid Exposure to Harsh Environments: Keep the isolator away from extreme temperatures, chemicals, or other factors that could damage the materials. Use protective covers when necessary.
- Prevent Impact or Collision: Avoid subjecting the isolator to violent impacts or physical damage to maintain its functionality.
7. Ensure Compatibility with Other Equipment:
- Check System Compatibility: Ensure that the isolator is compatible with other components in the system (such as pipes, fittings, and equipment) to prevent installation conflicts or damage.
By following these precautions, the adjustable spring isolator will function optimally during installation and use, ensuring reliable performance and extending its service life.
- The air spring is typically available in stock.
- The air springs manufactured by Shanghai Songjiang meet national standards and come with a one-year warranty. Any quality issues can be exchanged within this period.
- There is no purchase quantity limit. Small orders are generally shipped via international couriers such as DHL, FEDEX, UPS, TNT, etc., ensuring fast delivery, usually within 3-7 business days.
SHM Adjustable Spring Isolators Model List ：
