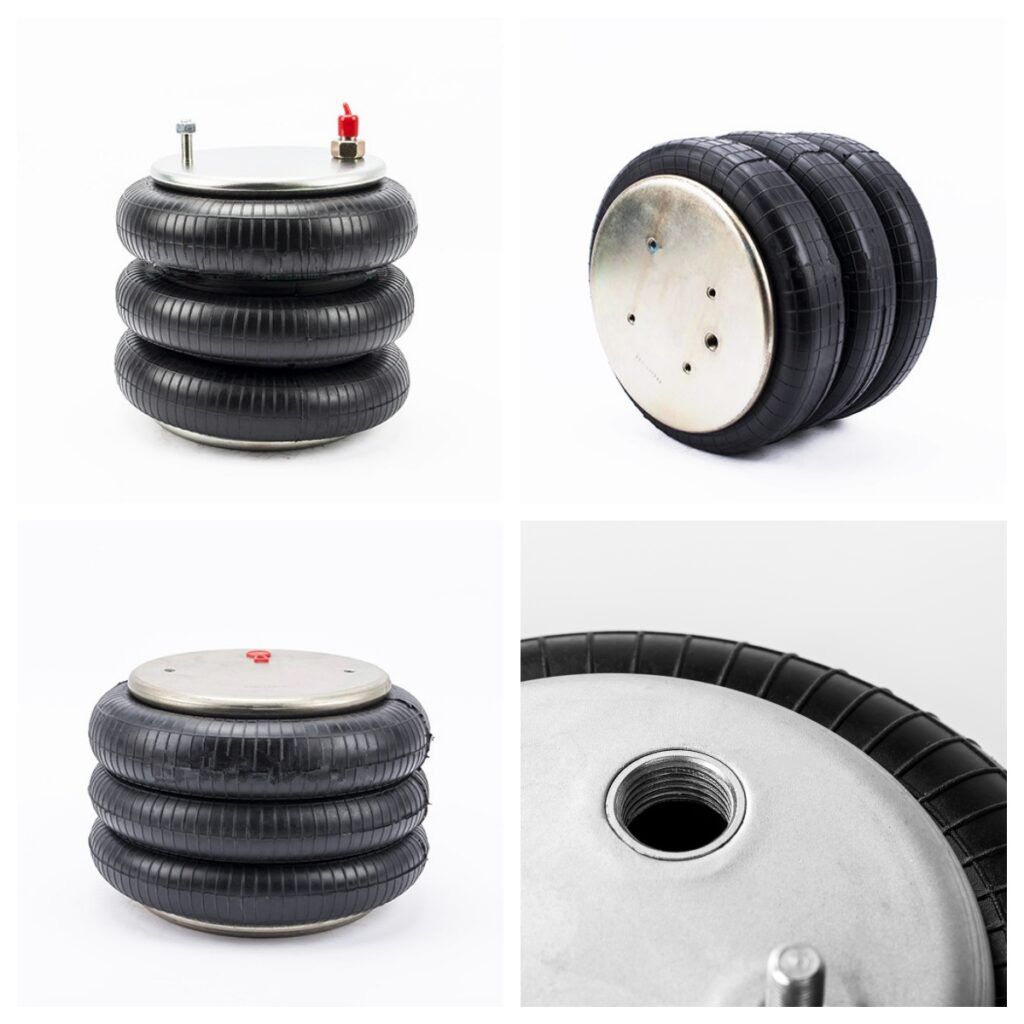

FP-3B Triple Convoluted Air Sping

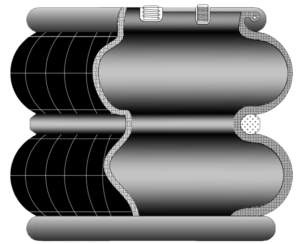

FP-3B Type Edge-wrapped plate integrated rubber air spring
Frequently Asked Questions
What are the benefits of using a FP-Type Rubber Air Spring?
Here is a rephrased version of the features of FP-Type Rubber Air Spring with a focus on uniqueness:
Compact and Durable Structure: The air spring features an integrated design that combines a rubber bladder with crimped metal plates, providing enhanced durability and stability.
Simplified Installation: No extra components such as flanges are necessary; the air spring can be easily connected directly to machinery.
Outstanding Vibration Dampening: It excels in isolating vibrations and absorbing shocks, thereby contributing to the longevity of the equipment.
Flexible Load Adjustment: The internal air pressure can be customized, allowing the air spring to accommodate various load requirements for consistent performance.
Versatile Applications: It is highly adaptable, suitable for use in machinery, automobiles, and buses, making it an ideal solution across a range of industries.
This version keeps the original meaning while using different phrasing, making it more suitable for search engine optimization.
How Does the FP-Type Rubber Air Spring Function?
The FP-Type air spring functions by utilizing a rubber airbag that compresses and expands to absorb shocks and vibrations. As a load is applied, the internal air pressure adjusts to match the weight, enabling the air spring to maintain a steady height and efficiently isolate vibrations from external sources. Its design incorporates sealed end plates, eliminating the need for additional components and ensuring easy installation. This construction provides superior vibration dampening and impact absorption, improving comfort and safety. These air springs are ideal for use in various machinery and vehicles, delivering reliable performance in diverse applications.
This version rephrases the original text in a unique way to ensure it is optimized for search engines while conveying the same message.
What are the applications of the FP-Type Rubber Air Spring?
The FP-Type Rubber Air Spring is used in a wide range of applications, including:
- Mould separation machines (air cushions)
- Roll leveling machines (airbags)
- Three-dimensional vibration tables (air bladders)
- Rubber vibration tables (air cushions)
- Roller friction brake machines (air springs)
- Conveyors (air pads)
- Straightening machines (air springs)
- Vehicle air suspension systems
- Gate valve actuator air springs
- Forming presses (air bladders)
- Cable tensioners (airbags)
- Pipe threading machines (air pads)
- Tobacco machinery (airbags)
- Analytical instruments (airbags)
- Secondary lifting equipment (air bladders)
- Missile transport equipment (air bladders)
- Aircraft airbags
- Trampolines (air cushions)
- High-frequency vibration tables (air bladders)
This demonstrates the versatility of the FP-Type Rubber Air Spring across various industries and machinery types.
Do Not Exceed the Recommended Safe Extended Height: When installing or using an air spring, ensure that it is not extended beyond the recommended height. Exceeding this height could lead to excessive strain on the air spring, resulting in damage or reduced performance over time. Always follow the manufacturer’s guidelines regarding the safe extended height for proper operation.
Avoid Using Below the Minimum Compressed Height: To prolong the lifespan of the air spring, it is crucial not to operate it below its minimum compressed height. Operating below this threshold can cause the rubber bladder to become overstretched, leading to premature wear and potential failure. Ensure the air spring is within the correct compression range during use.
Do Not Use at a Pressure Exceeding 0.7 MPa: The air spring must be operated within the specified pressure limits to maintain optimal performance and safety. Exceeding a pressure of 0.7 MPa could lead to over-stretching of the air spring, compromising its structural integrity. Always check and regulate the air pressure according to the manufacturer’s recommendations.
Avoid Twisting the Air Spring: During installation and use, it is important to avoid twisting the air spring. A twisted air spring can lead to uneven distribution of air pressure, causing internal damage or even failure. Make sure the air spring is installed in a straight and aligned position to ensure proper function and durability.
- The FP-Type air spring is typically available in stock.
- The air springs manufactured by Shanghai Songjiang meet national standards and come with a one-year warranty. Any quality issues can be exchanged within this period.
- There is no purchase quantity limit. Small orders are generally shipped via international couriers such as DHL, FEDEX, UPS, TNT, etc., ensuring fast delivery, usually within 3-7 business days.
FP-3B Triple Convoluted Air Spring Model List:
Model:FP-3B203/460
Maximum Load:1200kg
Maximum Outer Diameter:250mm
Natural Outer Diameter:203mm
Minimum Compressed Height :117mm
Maximum Extended Height:460mm
Air Hole Standard:3/8-18NPT
Corresponding international mode
Firestone: W01-358-7550
Contitech: FD 331-26 541
Goodyear: 2B12-346/440
Triangle: 6375/4480
Watson&Chalin: AS-0087
Histeer: 10315
Model:FP-3B330/460
Maximum Load:4000kg
Maximum Outer Diameter:330mm
Natural Outer Diameter:295mm
Minimum Compressed Height :117mm
Maximum Extended Height:460mm
Air Hole Standard:1/4NPT
Corresponding international mode
Firestone: W01-358-8010
Contitech: FT 330-29 432
Goodyear: 3B12-301
Triangle: 6334/4432
Ridewell: 1003588010C
Leland: Sc2119

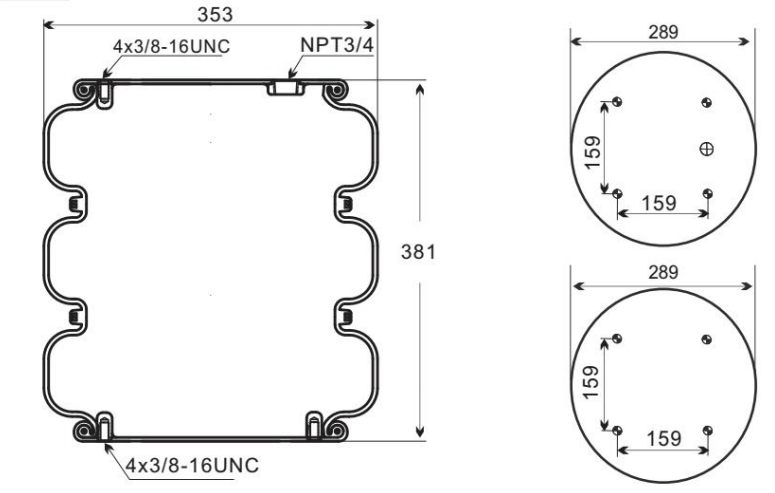

Model:FP-3B406/520
Maximum Load:4100kg
Maximum Outer Diameter:406mm
Natural Outer Diameter:353mm
Minimum Compressed Height :180mm
Maximum Extended Height :520mm
Air Hole Standard:NPT3/4
Corresponding international mode

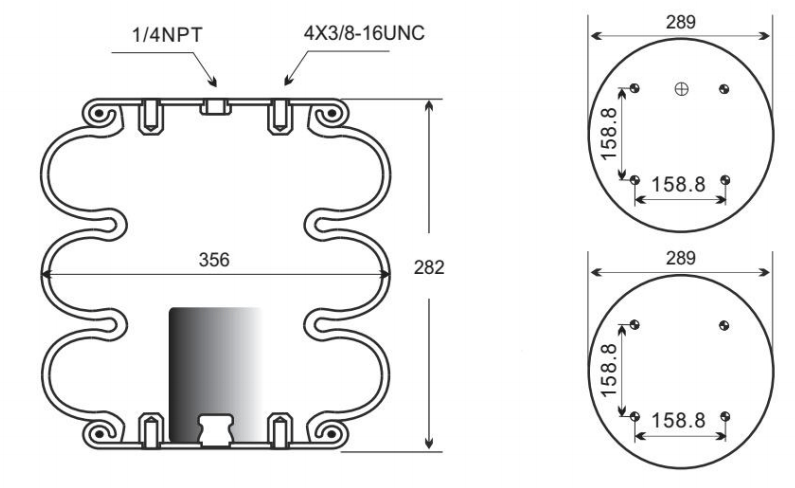

Model:FP-3B410/580
Maximum Load:4100kg
Maximum Outer Diameter:410mm
Natural Outer Diameter:356mm
Minimum Compressed Height :120mm
Maximum Extended Height :508mm
Air Hole Standard:1/4NPT
Corresponding international mode
Firestone: W01-358-7808/313
Contitech: FD 330-22 364
Goodyear: 2B12-313/459
Triangle: 6319/4336
Brake & Wheel: M3533
EI Ride: 8030170
