FP-1B Single Convoluted Air Sping

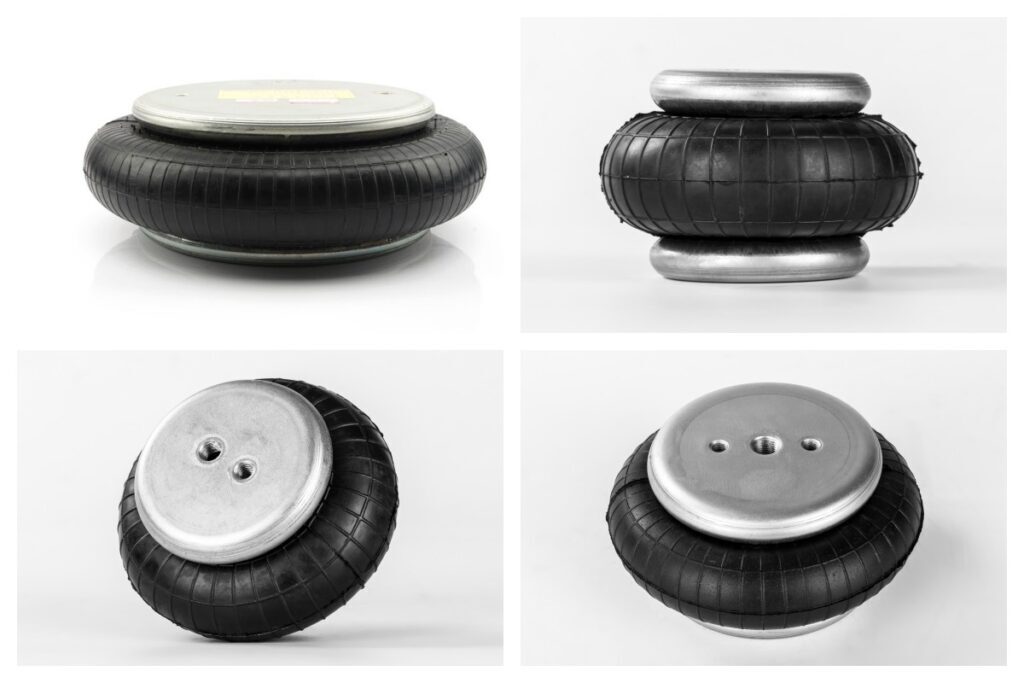

FP-1B Type Edge-wrapped plate integrated rubber air spring
Frequently Asked Questions
What are the benefits of using a FP-Type Rubber Air Spring?
Here is a rephrased version of the features of FP-Type Rubber Air Spring with a focus on uniqueness:
Compact and Durable Structure: The air spring features an integrated design that combines a rubber bladder with crimped metal plates, providing enhanced durability and stability.
Simplified Installation: No extra components such as flanges are necessary; the air spring can be easily connected directly to machinery.
Outstanding Vibration Dampening: It excels in isolating vibrations and absorbing shocks, thereby contributing to the longevity of the equipment.
Flexible Load Adjustment: The internal air pressure can be customized, allowing the air spring to accommodate various load requirements for consistent performance.
Versatile Applications: It is highly adaptable, suitable for use in machinery, automobiles, and buses, making it an ideal solution across a range of industries.
This version keeps the original meaning while using different phrasing, making it more suitable for search engine optimization.
How Does the FP-Type Rubber Air Spring Function?
The FP-Type air spring functions by utilizing a rubber airbag that compresses and expands to absorb shocks and vibrations. As a load is applied, the internal air pressure adjusts to match the weight, enabling the air spring to maintain a steady height and efficiently isolate vibrations from external sources. Its design incorporates sealed end plates, eliminating the need for additional components and ensuring easy installation. This construction provides superior vibration dampening and impact absorption, improving comfort and safety. These air springs are ideal for use in various machinery and vehicles, delivering reliable performance in diverse applications.
This version rephrases the original text in a unique way to ensure it is optimized for search engines while conveying the same message.
What are the applications of the FP-Type Rubber Air Spring?
The FP-Type Rubber Air Spring is used in a wide range of applications, including:
- Mould separation machines (air cushions)
- Roll leveling machines (airbags)
- Three-dimensional vibration tables (air bladders)
- Rubber vibration tables (air cushions)
- Roller friction brake machines (air springs)
- Conveyors (air pads)
- Straightening machines (air springs)
- Vehicle air suspension systems
- Gate valve actuator air springs
- Forming presses (air bladders)
- Cable tensioners (airbags)
- Pipe threading machines (air pads)
- Tobacco machinery (airbags)
- Analytical instruments (airbags)
- Secondary lifting equipment (air bladders)
- Missile transport equipment (air bladders)
- Aircraft airbags
- Trampolines (air cushions)
- High-frequency vibration tables (air bladders)
This demonstrates the versatility of the FP-Type Rubber Air Spring across various industries and machinery types.
Do Not Exceed the Recommended Safe Extended Height: When installing or using an air spring, ensure that it is not extended beyond the recommended height. Exceeding this height could lead to excessive strain on the air spring, resulting in damage or reduced performance over time. Always follow the manufacturer’s guidelines regarding the safe extended height for proper operation.
Avoid Using Below the Minimum Compressed Height: To prolong the lifespan of the air spring, it is crucial not to operate it below its minimum compressed height. Operating below this threshold can cause the rubber bladder to become overstretched, leading to premature wear and potential failure. Ensure the air spring is within the correct compression range during use.
Do Not Use at a Pressure Exceeding 0.7 MPa: The air spring must be operated within the specified pressure limits to maintain optimal performance and safety. Exceeding a pressure of 0.7 MPa could lead to over-stretching of the air spring, compromising its structural integrity. Always check and regulate the air pressure according to the manufacturer’s recommendations.
Avoid Twisting the Air Spring: During installation and use, it is important to avoid twisting the air spring. A twisted air spring can lead to uneven distribution of air pressure, causing internal damage or even failure. Make sure the air spring is installed in a straight and aligned position to ensure proper function and durability.
- The FP-Type air spring is typically available in stock.
- The air springs manufactured by Shanghai Songjiang meet national standards and come with a one-year warranty. Any quality issues can be exchanged within this period.
- There is no purchase quantity limit. Small orders are generally shipped via international couriers such as DHL, FEDEX, UPS, TNT, etc., ensuring fast delivery, usually within 3-7 business days.
FP-1B Single Convoluted Air Spring Model List:
Model:FP-1B145/110
Maximum Load: 350kg
Maximum Outer Diameter: 145mm
Natural Outer Diameter: 125mm
Minimum Compressed Height: 50mm
Maximum Extended Height: 110mm
Air Hole Standard: G1/8
Corresponding international mode
Contitech:FS 40-6
Phoenix:SP1B04
Weforma:WBE100-E1
Model:FP-1B165/115
Maximum Load:450kg
Maximum Outer Diameter: 165mm
Natural Outer Diameter: 150mm
Minimum Compressed Height: 50mm
Maximum Extended Height: 115mm
Air Hole Standard: G1/4
Corresponding international mode
Contitech : FS 70-7
Phoenix : SP 1 B 05
Bosch : 822419002
Festo : EB-165-65
Weforma : WBE 200-E1
Model:FP-1B196/115
Maximum Load:1200kg
Maximum Outer Diameter: 215mm
Natural Outer Diameter: 196mm
Minimum Compressed Height: 50mm
Maximum Extended Height: 115mm
Air Hole Standard: G1/4 or G3/4
Corresponding international mode
Firestone : W01-M58-6165/6
Contitech : FS 120-9
Dunlop(FR) : 8″x1 S08101
Festo : EB-215-80
Norgren : PM/31081(8×1)
Weforma : WBE 300-E1/E2

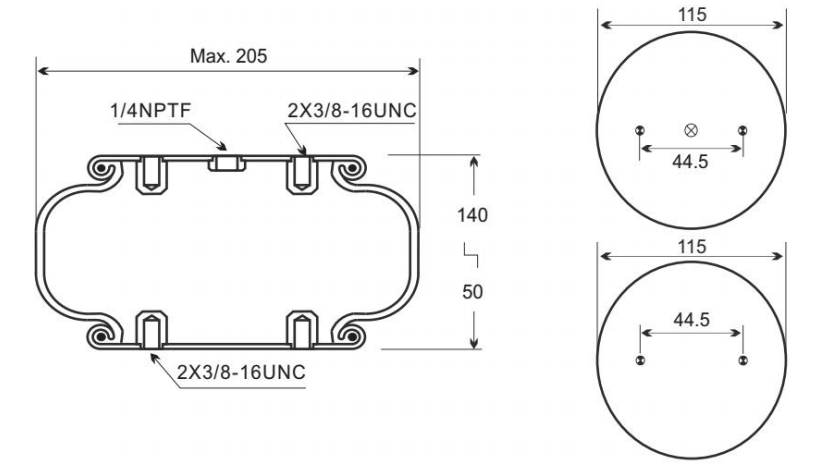

Model:FP-1B205/140
Maximum Load:750kg
Maximum Outer Diameter: 205mm
Natural Outer Diameter: 180mm
Minimum Compressed Height: 50mm
Maximum Extended Height: 140mm
Air Hole Standard:1/4NPTF
Corresponding international mode
Firestone : W01-358-7451
Goodyear : 1B7-540
Model:FP-1B230/140
Maximum Load:980kg
Maximum Outer Diameter: 230mm
Natural Outer Diameter: 194mm
Minimum Compressed Height: 50mm
Maximum Extended Height: 172mm
Air Hole Standard:1/4NPTF
Corresponding international mode
Firestone : W01-358-7564
Goodyear : 1B8-550
Contitech : FS120-10
Model:FP-1B240/180
Maximum Load:1000kg
Maximum Outer Diameter: 240mm
Natural Outer Diameter: 220mm
Minimum Compressed Height: 60mm
Maximum Extended Height: 180mm
Air Hole Standard:1/4NPTF
Corresponding international mode
Firestone : W01-358-7598
Goodyear : 1B8-580
Model:FP-1B250/140
Maximum Load:1500kg
Maximum Outer Diameter: 250mm
Natural Outer Diameter: 220mm
Minimum Compressed Height: 57mm
Maximum Extended Height: 180mm
Air Hole Standard:G1/4andG3/4
Corresponding international mode
Firestone : W01-M58-6374
Contitech : FS 200-10
Phoenix : SP 1B 12
Dunlop(FR) : 9″1/4×1 S09101
Festo : EB-250-85
Norgren : PM/31091(81/4×1

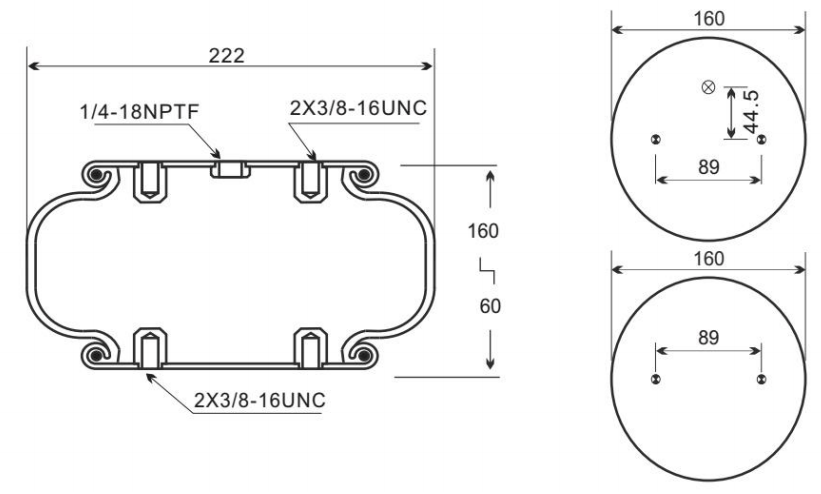

Model:FP-1B250/160
Maximum Load:1500kg
Maximum Outer Diameter: 250mm
Natural Outer Diameter: 222mm
Minimum Compressed Height: 60mm
Maximum Extended Height: 160mm
Air Hole Standard:1/4-18NPTF
Corresponding international mode
Goodyear : 1B9-202

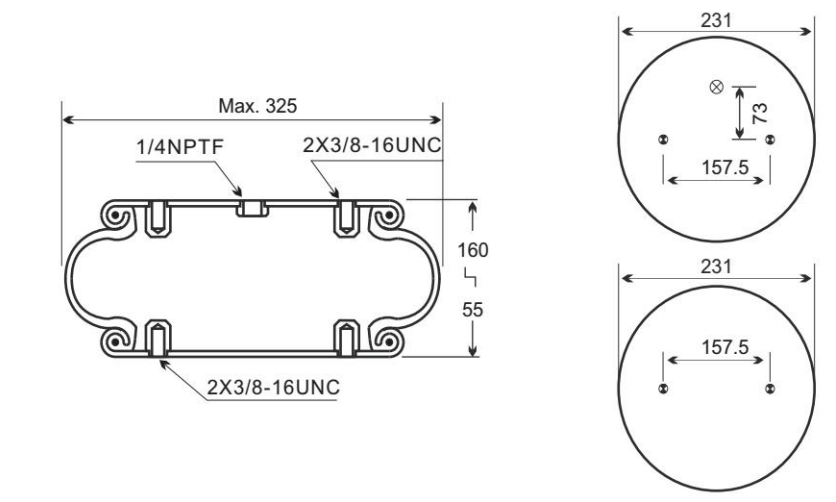

Model:FP-1B325/160
Maximum Load:3500kg
Maximum Outer Diameter: 325mm
Natural Outer Diameter: 303mm
Minimum Compressed Height: 55mm
Maximum Extended Height: 160mm
Air Hole Standard:1/4NPTF
Corresponding international mode
Firestone: W01-358-7008
Contitech: FS 330-11 474
Goodyear: 1B12-300/313
Triangle: 6374/4474
Holland(Neway): 90557226

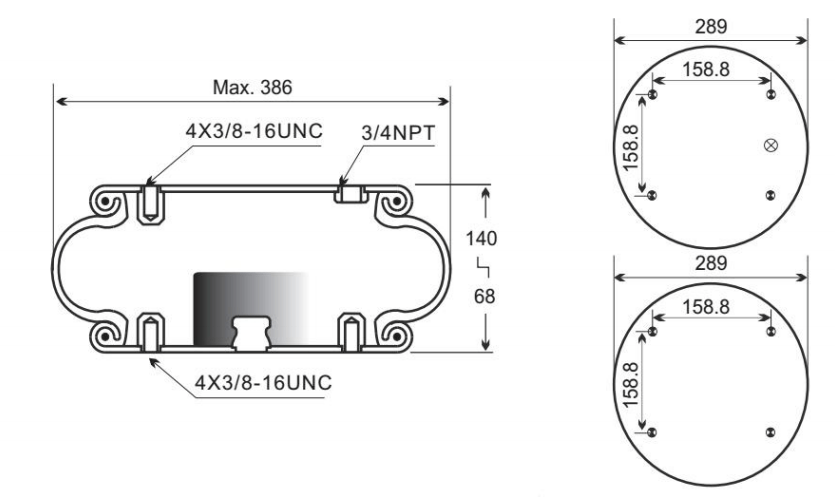

Model:FP-1B386/140
Maximum Load:4600kg
Maximum Outer Diameter: 386mm
Natural Outer Diameter: 360mm
Minimum Compressed Height: 68mm
Maximum Extended Height: 140mm
Air Hole Standard:3/4NPT
Corresponding international mode
Firestone: W01-358-7008
Contitech: FS 330-11 474
Goodyear: 1B12-300/313
Triangle: 6374/4474
Holland(Neway): 90557226
