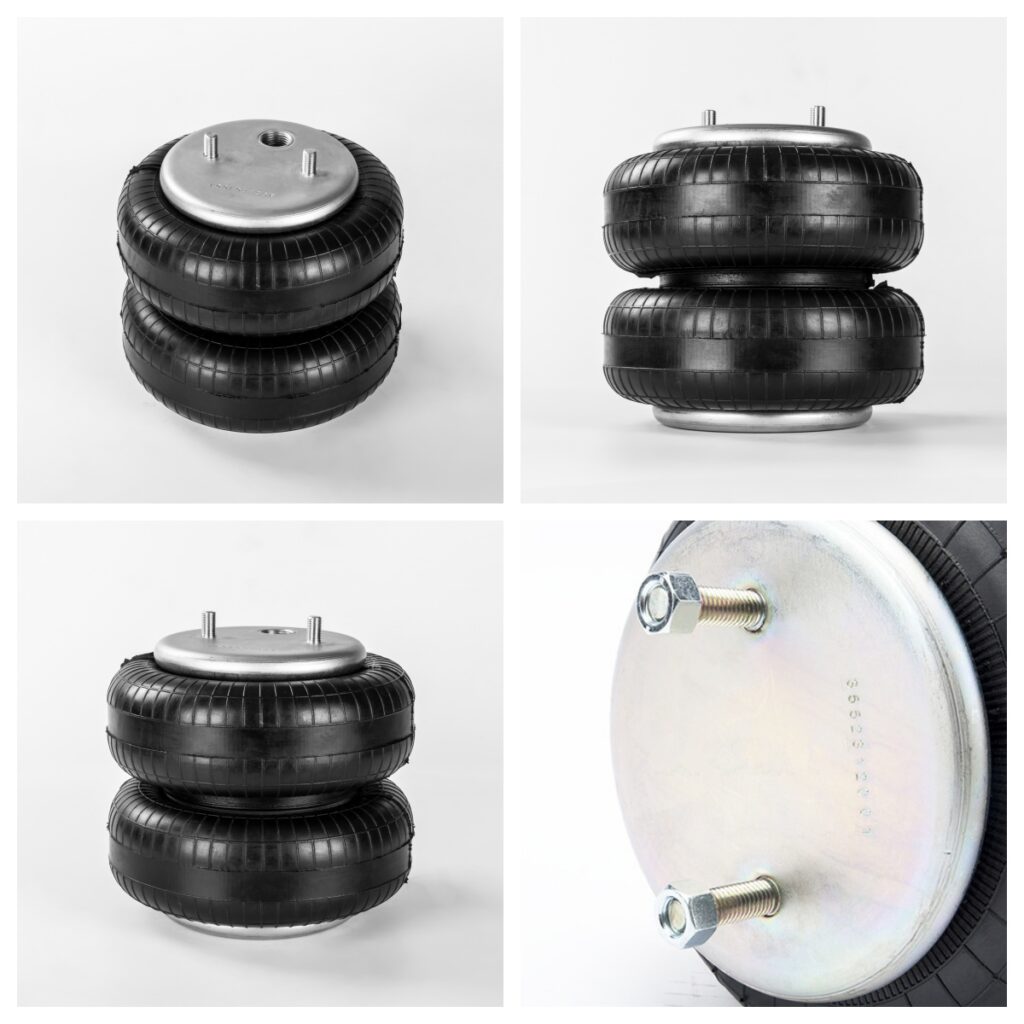

FP-2B Double Convoluted Air Sping

FP-2B Type Edge-wrapped plate integrated rubber air spring

Frequently Asked Questions

Here is a rephrased version of the features of FP-Type Rubber Air Spring with a focus on uniqueness:

  1. Compact and Durable Structure: The air spring features an integrated design that combines a rubber bladder with crimped metal plates, providing enhanced durability and stability.

  2. Simplified Installation: No extra components such as flanges are necessary; the air spring can be easily connected directly to machinery.

  3. Outstanding Vibration Dampening: It excels in isolating vibrations and absorbing shocks, thereby contributing to the longevity of the equipment.

  4. Flexible Load Adjustment: The internal air pressure can be customized, allowing the air spring to accommodate various load requirements for consistent performance.

  5. Versatile Applications: It is highly adaptable, suitable for use in machinery, automobiles, and buses, making it an ideal solution across a range of industries.

This version keeps the original meaning while using different phrasing, making it more suitable for search engine optimization.

The FP-Type air spring functions by utilizing a rubber airbag that compresses and expands to absorb shocks and vibrations. As a load is applied, the internal air pressure adjusts to match the weight, enabling the air spring to maintain a steady height and efficiently isolate vibrations from external sources. Its design incorporates sealed end plates, eliminating the need for additional components and ensuring easy installation. This construction provides superior vibration dampening and impact absorption, improving comfort and safety. These air springs are ideal for use in various machinery and vehicles, delivering reliable performance in diverse applications.

This version rephrases the original text in a unique way to ensure it is optimized for search engines while conveying the same message.

The FP-Type Rubber Air Spring is used in a wide range of applications, including:

  • Mould separation machines (air cushions)
  • Roll leveling machines (airbags)
  • Three-dimensional vibration tables (air bladders)
  • Rubber vibration tables (air cushions)
  • Roller friction brake machines (air springs)
  • Conveyors (air pads)
  • Straightening machines (air springs)
  • Vehicle air suspension systems
  • Gate valve actuator air springs
  • Forming presses (air bladders)
  • Cable tensioners (airbags)
  • Pipe threading machines (air pads)
  • Tobacco machinery (airbags)
  • Analytical instruments (airbags)
  • Secondary lifting equipment (air bladders)
  • Missile transport equipment (air bladders)
  • Aircraft airbags
  • Trampolines (air cushions)
  • High-frequency vibration tables (air bladders)

This demonstrates the versatility of the FP-Type Rubber Air Spring across various industries and machinery types.

FP-2B Double Convoluted Air Spring Model List:

Model:FP-2B145/170

Maximum Load: 350kg

Maximum Outer Diameter: 145mm

Natural Outer Diameter: 125mm

Minimum Compressed Height: 65mm

Maximum Extended Height: 170mm

Air Hole Standard: G1/8

Corresponding international mode

Contitech: FD 40-10

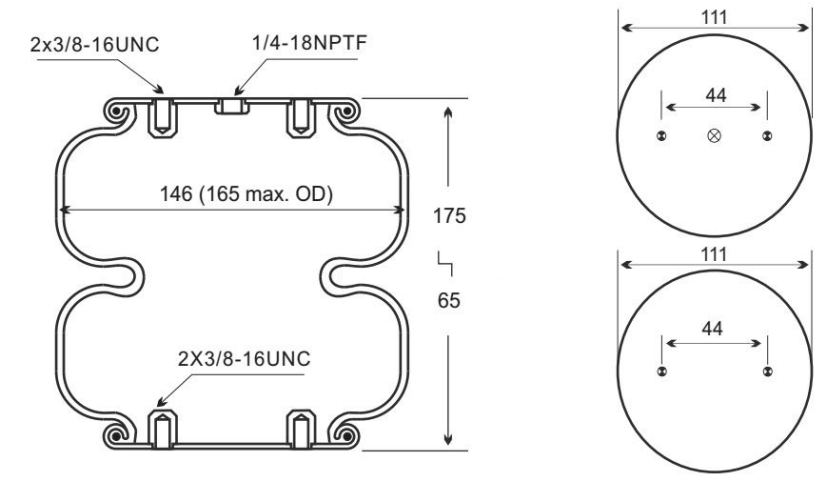

Model:FP-2B165/175

Maximum Load:600kg

Maximum Outer Diameter: 165mm

Natural Outer Diameter: 152mm

Minimum Compressed Height: 65mm

Maximum Extended Height: 175mm

Air Hole Standard: G1/4

Corresponding international mode

Firestone : W01-358-7025

Model:FP-2B165/200

Maximum Load:700kg

Maximum Outer Diameter: 165mm

Natural Outer Diameter: 146mm

Minimum Compressed Height: 75mm

Maximum Extended Height: 200mm

Air Hole Standard: G1/4

Corresponding international mode

Contitech: FD 70-13

Model:FP-2B203/230

Maximum Load:1200kg

Maximum Outer Diameter:203mm

Natural Outer Diameter:173mm

Minimum Compressed Height :75mm

Maximum Extended Height:230mm

Air Hole Standard:1/4NPTF

Corresponding international mode

Firestone : W01-358-3400/224
Goodyear : 2B7-540
American Carrier : 8003-009

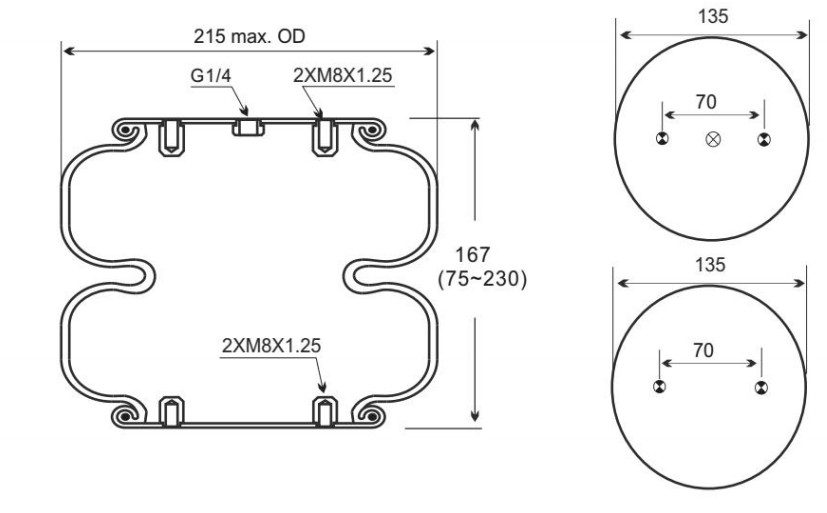

Model:FP-2B215/230

Maximum Load:1200kg

Maximum Outer Diameter:215mm

Natural Outer Diameter:195mm

Minimum Compressed Height :75mm

Maximum Extended Height:230mm

Air Hole Standard:G1/4 or G3/4

Corresponding international mode

Firestone: W01-M58-6353
Contitech: FD 120-17
Goodyear: 2B-181
Airkraft: 113054

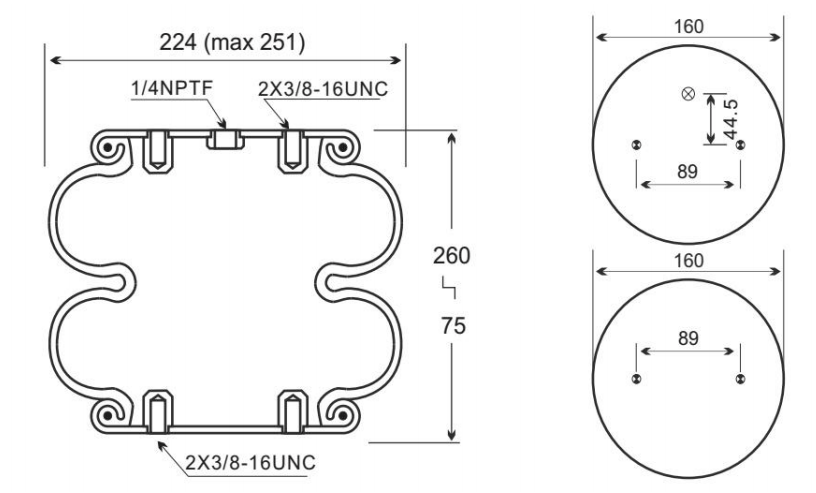

Model:FP-2B250/274

Maximum Load:1500kg

Maximum Outer Diameter:251mm

Natural Outer Diameter:224mm

Minimum Compressed Height :75mm

Maximum Extended Height :260mm

Air Hole Standard : 1/4NPTF or G1/4

Corresponding international mode

Firestone: W01-358-6910
Contitech: FD 200-19 320
Goodyear: 2B9-200/202/216
Triangle: 6325/4320
Taurus: KF218-6910

Model:FP-2B262/275

Maximum Load:1900kg

Maximum Outer Diameter:262mm

Natural Outer Diameter:233mm

Minimum Compressed Height :80mm

Maximum Extended Height :275mm

Air Hole Standard:1/4NPTF

Corresponding international mode

Firestone:W01-358-6951
Contitech:FD 200-25

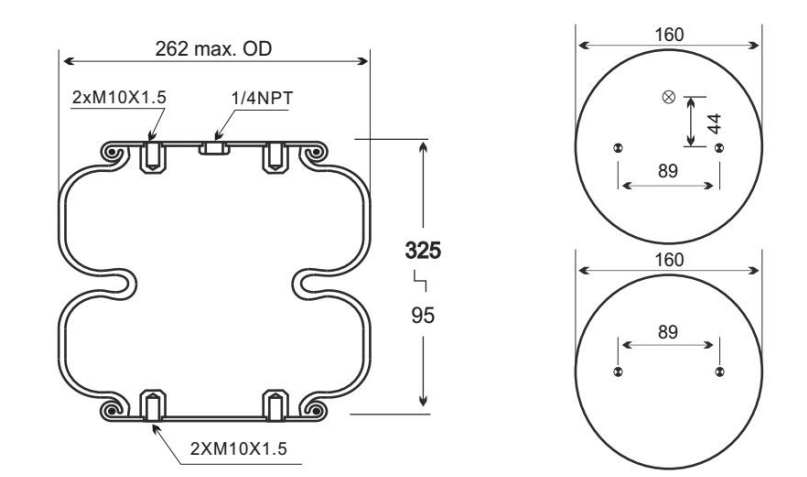

Model:FP-2B262/325

Maximum Load:1900kg

Maximum Outer Diameter:262mm

Natural Outer Diameter:233mm

Minimum Compressed Height :95mm

Maximum Extended Height:325mm

Air Hole Standard:1/4NPT

Corresponding international mode

Firestone: W01-M58-7679/20C2
Dunlop: S0 9280
Goodyear: 2B9-269
Gart: T291/2B

Model:FP-2B203/260

Maximum Load:1200kg

Maximum Outer Diameter:203mm

Natural Outer Diameter:189mm

Minimum Compressed Height :80mm

Maximum Extended Height:260mm

Air Hole Standard:M12*1.5

Corresponding international mode

Firestone: W01-358-7325
Contitech: FD 120-17 509
Goodyear: 2B8-150/153/550
Triangle:6392/4509
Sauerl: P10754
Hendrickson: NA1821/S14395

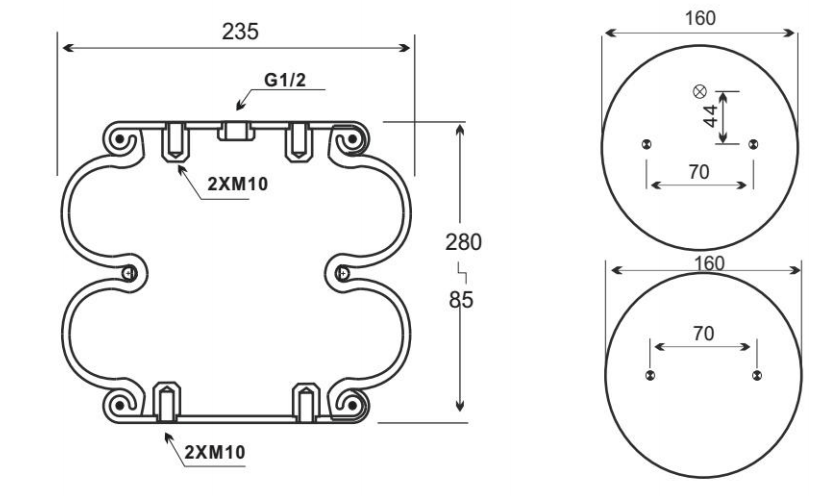

Model:FP-2B235/280

Maximum Load:1500kg

Maximum Outer Diameter:235mm

Natural Outer Diameter:210mm

Minimum Compressed Height :85mm

Maximum Extended Height:280mm

Air Hole Standard:G1/2

Corresponding international mode

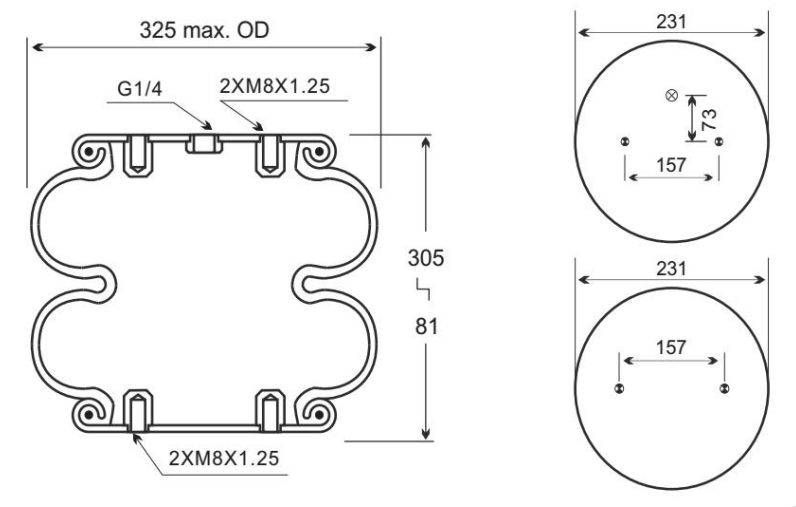

Model:FP-2B325/305

Maximum Load:3500kg

Maximum Outer Diameter:325mm

Natural Outer Diameter:300mm

Minimum Compressed Height :81mm

Maximum Extended Height:305mm

Air Hole Standard:G1/4、G1/2、1/4NPTF

Corresponding international mode

Firestone: W01-358-7180/22
Contitech: FD 330-22 363
Goodyear: 2B12-425/311
Triangle: 6316/4363
Airkraft: 115061/3B-356
Vibracoustic: VSP2B22R718
Hendrickson: 1VA1816

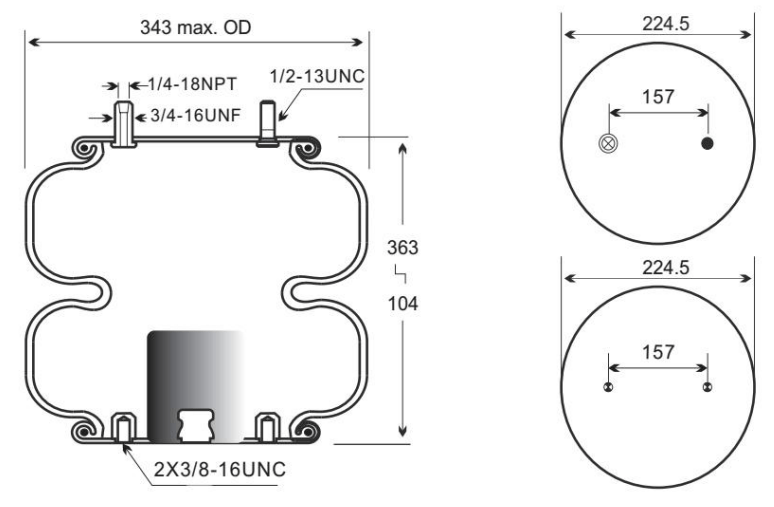

Model:FP-2B343/104

Maximum Load:3630kg

Maximum Outer Diameter:343mm

Natural Outer Diameter:303mm

Minimum Compressed Height :104mm

Maximum Extended Height :363mm

Air Hole Standard: Internal 1/4-18NPT, External 3/4-16UNF

Corresponding international mode

Firestone: W01-358-7550
Contitech: FD 331-26 541
Goodyear: 2B12-346/440
Triangle: 6375/4480
Watson&Chalin: AS-0087
Histeer: 10315

Model:FP-2B406/300

Maximum Load:5000kg

Maximum Outer Diameter:360mm

Natural Outer Diameter:325mm

Minimum Compressed Height :90mm

Maximum Extended Height :300mm

Air Hole Standard:Rc1/4

Corresponding international mode

Firestone: W01-358-7781/233-2
Contitech: FD 530-35 545
Goodyear: 2B12-427
Triangle: 6312
Ridewell: 1003587781C

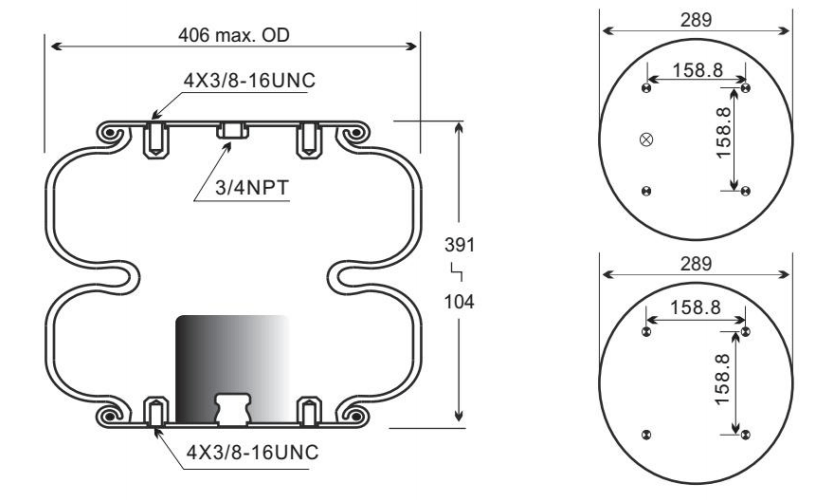

Model:FP-2B406/391

Maximum Load:4500kg

Maximum Outer Diameter:406mm

Natural Outer Diameter:353mm

Minimum Compressed Height :104mm

Maximum Extended Height:391mm

Air Hole Standard:3/4NPT

Corresponding international mode

Firestone: W01-358-7781
Contitech: FD 530-35 545
Ridewell: 1003587781C
