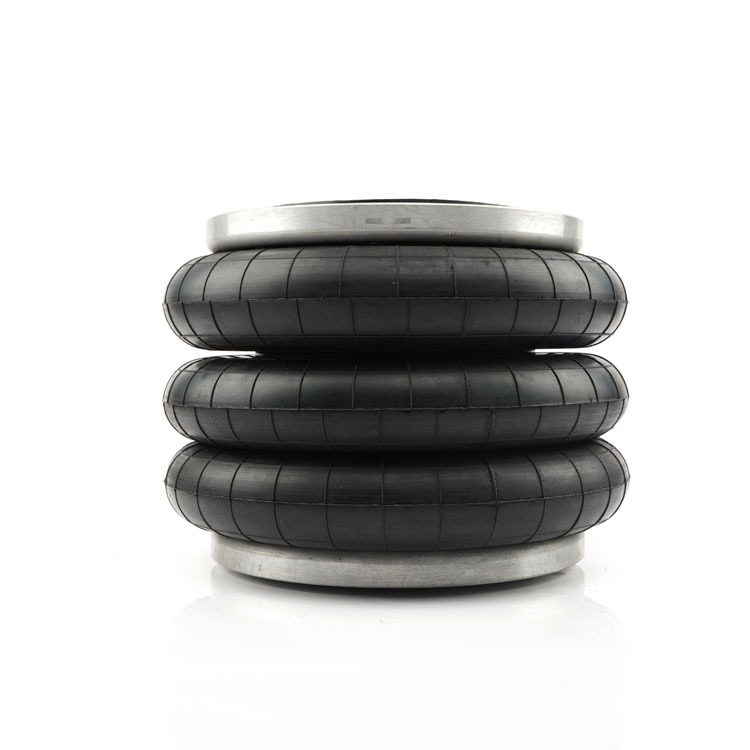

FT Type Triple Bellows Air Spring

FT Type Edge-wrapped plate integrated rubber air spring

Frequently Asked Questions

FT-Type Rubber Air Springs offer a range of benefits that make them highly suitable for industrial vibration isolation and load-bearing applications:

  1. Excellent Vibration Isolation
    The flexible rubber air chamber effectively absorbs and isolates both high- and low-frequency vibrations, reducing noise and protecting sensitive equipment.

  2. Adjustable Load and Height
    Air pressure inside the spring can be adjusted to accommodate different load conditions, making it ideal for dynamic systems such as HVAC units, compressors, and platforms.

  3. Modular Design with Movable Flange
    Each FT-type air spring is equipped with a movable flange, allowing the user to easily assemble it with an additional blind plate using bolts. This design makes installation, removal, and replacement of the rubber airbag extremely convenient—especially useful when only the rubber part is damaged.

  4. Long Service Life
    Made from high-strength, wear-resistant rubber (like neoprene), FT-Type air springs are built for thousands of compression cycles in harsh environments without loss of performance.

  5. Low Maintenance
    Unlike metal springs, FT air springs operate without metal-to-metal contact, requiring no lubrication and minimal maintenance over time.

  6. Compact and Lightweight
    The cylindrical design allows for easy integration into tight or limited spaces, while still delivering high load capacity.

The FT-Type air spring functions by utilizing a rubber airbag that compresses and expands to absorb shocks and vibrations. As a load is applied, the internal air pressure adjusts to match the weight, enabling the air spring to maintain a steady height and efficiently isolate vibrations from external sources. Its design incorporates sealed end plates, eliminating the need for additional components and ensuring easy installation. This construction provides superior vibration dampening and impact absorption, improving comfort and safety. These air springs are ideal for use in various machinery and vehicles, delivering reliable performance in diverse applications.

This version rephrases the original text in a unique way to ensure it is optimized for search engines while conveying the same message.

The FT-Type Rubber Air Spring is used in a wide range of applications, including:

  • Mould separation machines (air cushions)
  • Roll leveling machines (airbags)
  • Three-dimensional vibration tables (air bladders)
  • Rubber vibration tables (air cushions)
  • Roller friction brake machines (air springs)
  • Conveyors (air pads)
  • Straightening machines (air springs)
  • Vehicle air suspension systems
  • Gate valve actuator air springs
  • Forming presses (air bladders)
  • Cable tensioners (airbags)
  • Pipe threading machines (air pads)
  • Tobacco machinery (airbags)
  • Analytical instruments (airbags)
  • Secondary lifting equipment (air bladders)
  • Missile transport equipment (air bladders)
  • Aircraft airbags
  • Trampolines (air cushions)
  • High-frequency vibration tables (air bladders)

This demonstrates the versatility of the FT-Type Rubber Air Spring across various industries and machinery types.

FT Type Triple Bellows Air Spring Model List:

Model:FT 200/206



Maximum Load:18191kg

Maximum Outer Diameter:600mm

Natural Outer Diameter:580mm

Minimum Compressed Height :88mm

Maximum Extended Height :246mm

The weight of the component :13.3kg

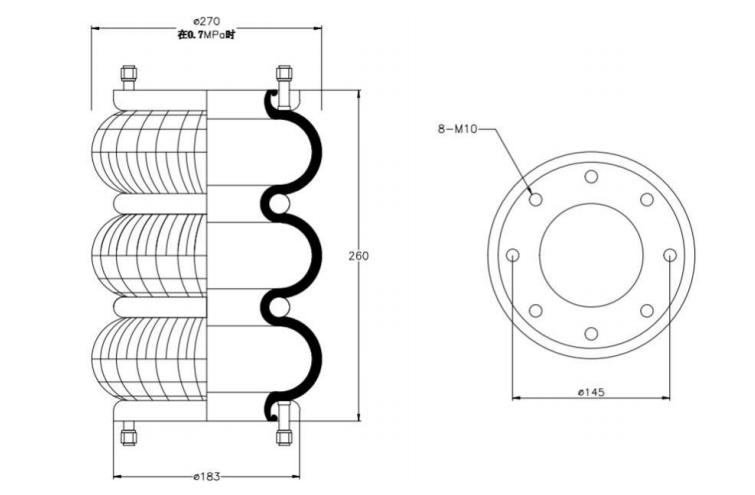

Model:FT 250/260



Maximum Load:2672kg

Maximum Outer Diameter:270mm

Natural Outer Diameter:250mm

Minimum Compressed Height :116mm

Maximum Extended Height :299mm

The weight of the component :5.5kg

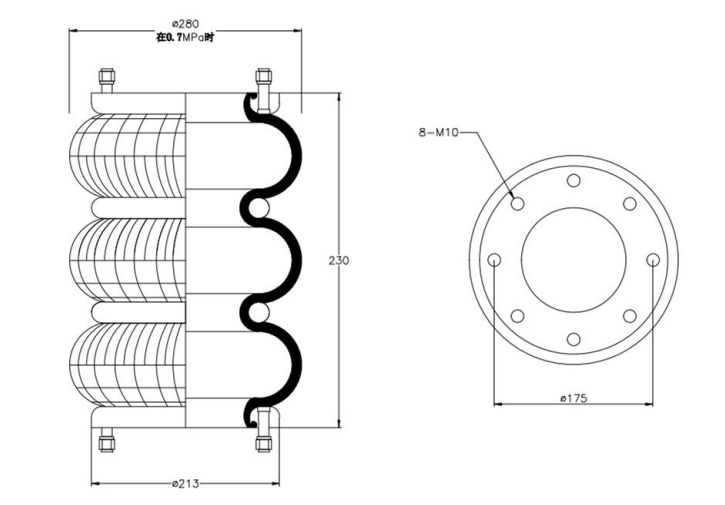

Model:FT 255/230



Maximum Load:2545kg

Maximum Outer Diameter:280mm

Natural Outer Diameter:255mm

Minimum Compressed Height :116mm

Maximum Extended Height :264mm

The weight of the component :5.55kg

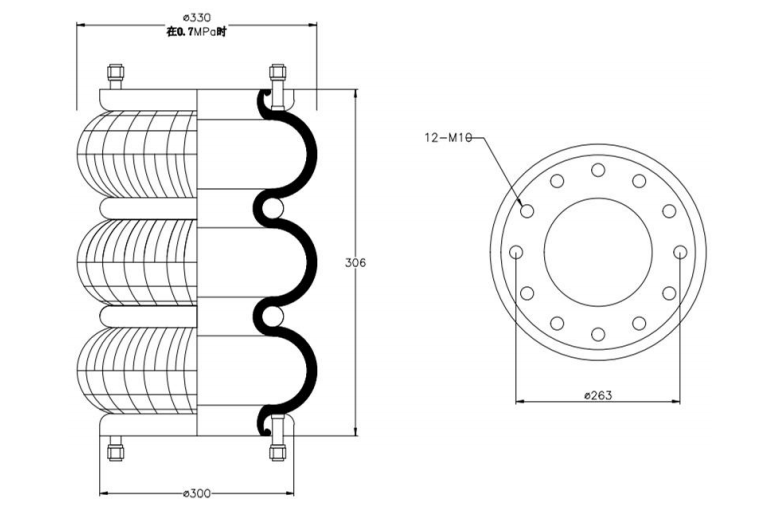

Model:FT 310/306



Maximum Load:5130kg

Maximum Outer Diameter:330mm

Natural Outer Diameter:310mm

Minimum Compressed Height :120mm

Maximum Extended Height :354mm

The weight of the component :7.3kg

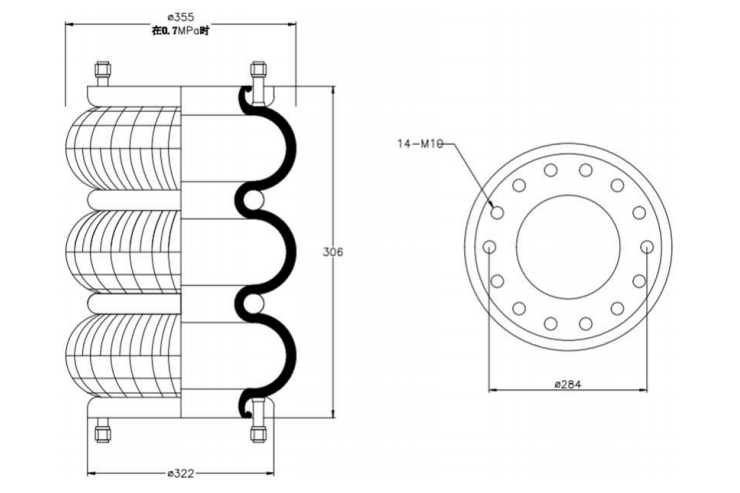

Model:FT 330/306



Maximum Load:5993kg

Maximum Outer Diameter:355mm

Natural Outer Diameter:330mm

Minimum Compressed Height :120mm

Maximum Extended Height :354mm

The weight of the component :8.7kg

Model:FT 360/306



Maximum Load:6560kg

Maximum Outer Diameter:380mm

Natural Outer Diameter:360mm

Minimum Compressed Height :122mm

Maximum Extended Height :360mm

The weight of the component :8.25kg

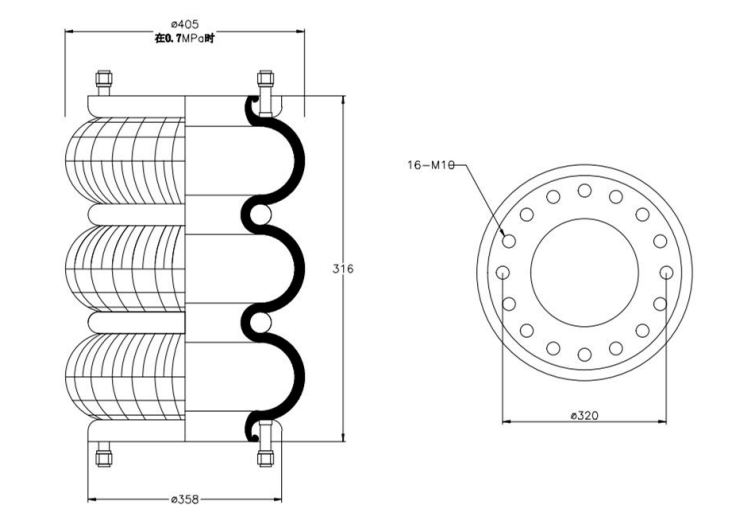

Model:FT 380/316



Maximum Load:7684kg

Maximum Outer Diameter:405mm

Natural Outer Diameter:380mm

Minimum Compressed Height :122mm

Maximum Extended Height :365mm

The weight of the component :11kg

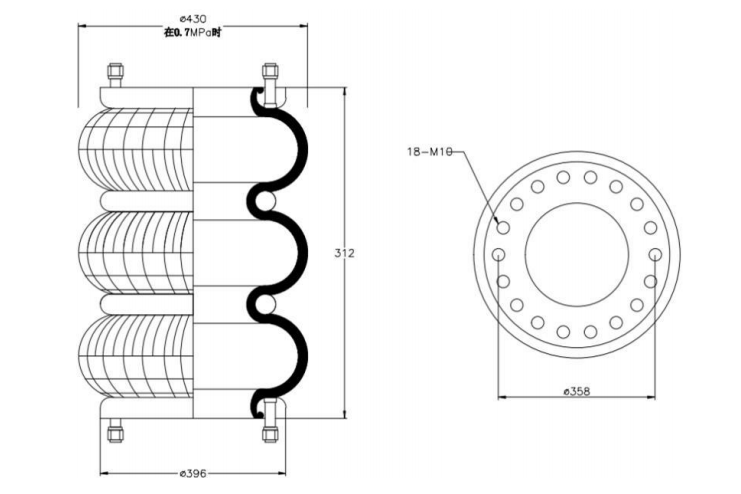

Model:FT 400/312



Maximum Load:8968kg

Maximum Outer Diameter:430mm

Natural Outer Diameter:400mm

Minimum Compressed Height :122mm

Maximum Extended Height :360mm

The weight of the component :12kg

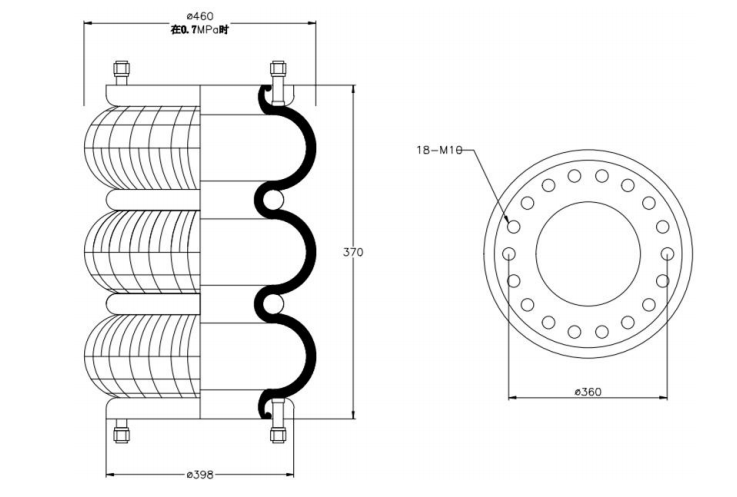

Model:FT 430/370



Maximum Load:9892kg

Maximum Outer Diameter:460mm

Natural Outer Diameter:430mm

Minimum Compressed Height :122mm

Maximum Extended Height :430mm

The weight of the component :14kg

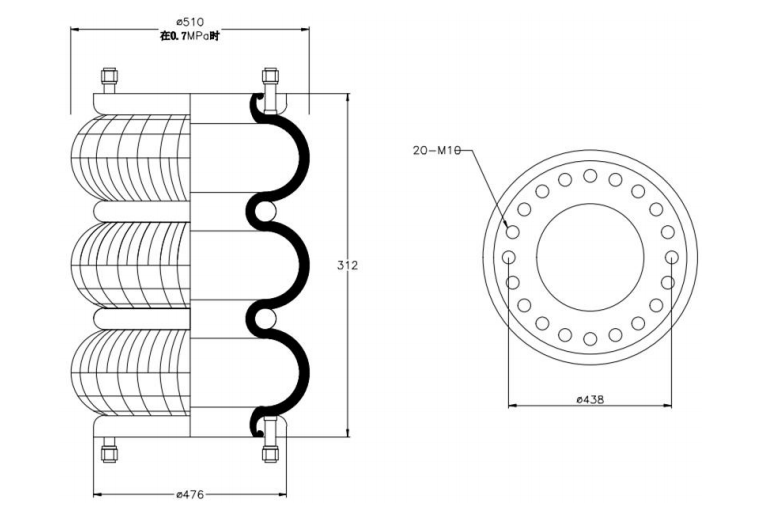

Model:FT 480/312



Maximum Load:12930kg

Maximum Outer Diameter:510mm

Natural Outer Diameter:480mm

Minimum Compressed Height :122mm

Maximum Extended Height :360mm

The weight of the component :16.5kg

Model:FT 520/312



Maximum Load:14654kg

Maximum Outer Diameter:550mm

Natural Outer Diameter:520mm

Minimum Compressed Height :122mm

Maximum Extended Height :360mm

The weight of the component :20kg

Model:FT 580/306



Maximum Load:18289kg

Maximum Outer Diameter:600mm

Natural Outer Diameter:580mm

Minimum Compressed Height :118mm

Maximum Extended Height :354mm

The weight of the component :19kg

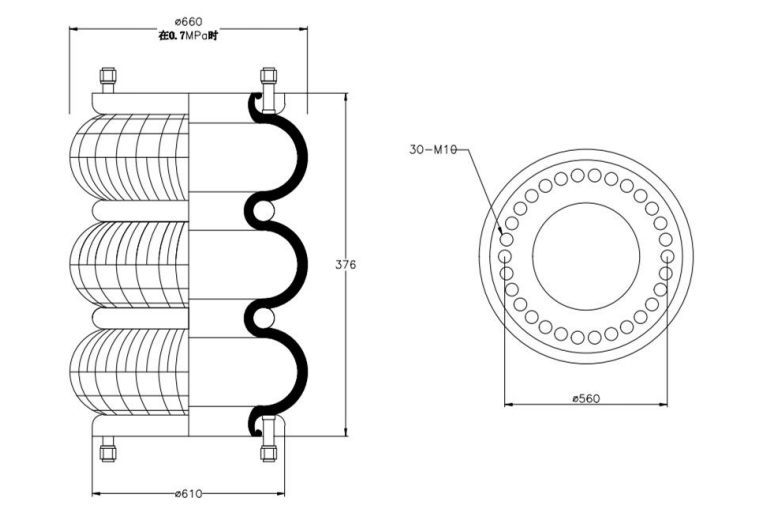

Model:FT 630/376



Maximum Load:22048kg

Maximum Outer Diameter:660mm

Natural Outer Diameter:630mm

Minimum Compressed Height :122mm

Maximum Extended Height :436mm

The weight of the component :24kg

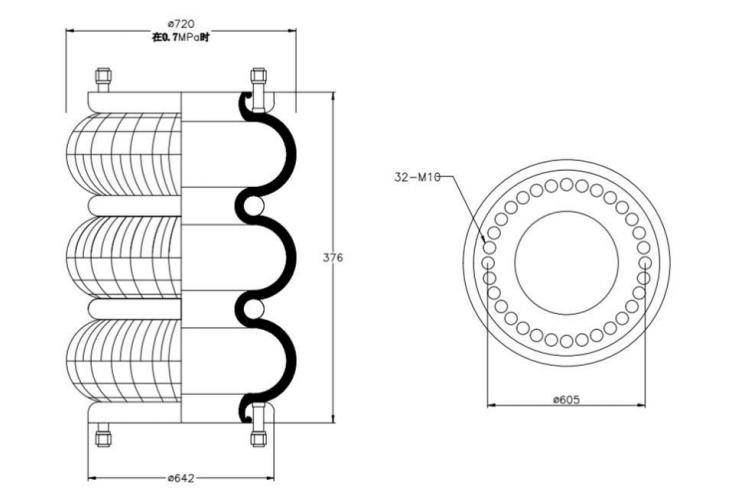

Model:FT 680/376



Maximum Load:25044kg

Maximum Outer Diameter:720mm

Natural Outer Diameter:680mm

Minimum Compressed Height :122mm

Maximum Extended Height :436mm

The weight of the component :28kg
